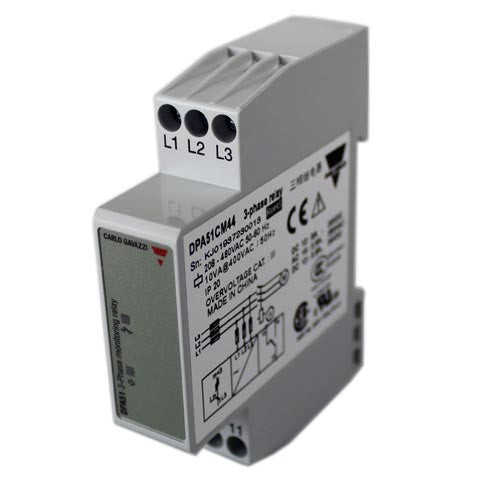

Carlo Gavazzi 3-Phase monitoring relay for detection of incorrect phase sequence, total and partial phase loss. Supply range from 208 to 480 VAC. For mounting on DINrail. Housing 17.5 mm wide, SPDT relay output, suitable for back and front panel mounting. The device detects regenerated voltage up to 85% of the nominal voltage (phase-phase).
|
OUTPUTSIGNAL |
1 relay |
|---|---|
| SETPOINTS | 1, fixed |
|
MONITOREDÊVARIABLE |
3-phase AC voltage monitoring |
| SIZE | 17,5 mm |
|---|---|
|
POWERÊSUPPLY RANGE |
208-480 VDC |
|
MONITORINGÊFUNCTION |
Phase sequence, phase loss |
| MOUTING | DIN-rail |
| INPUT RANGE | 208-480 VAC |
| OTHERS | Regenerated voltage detection |
