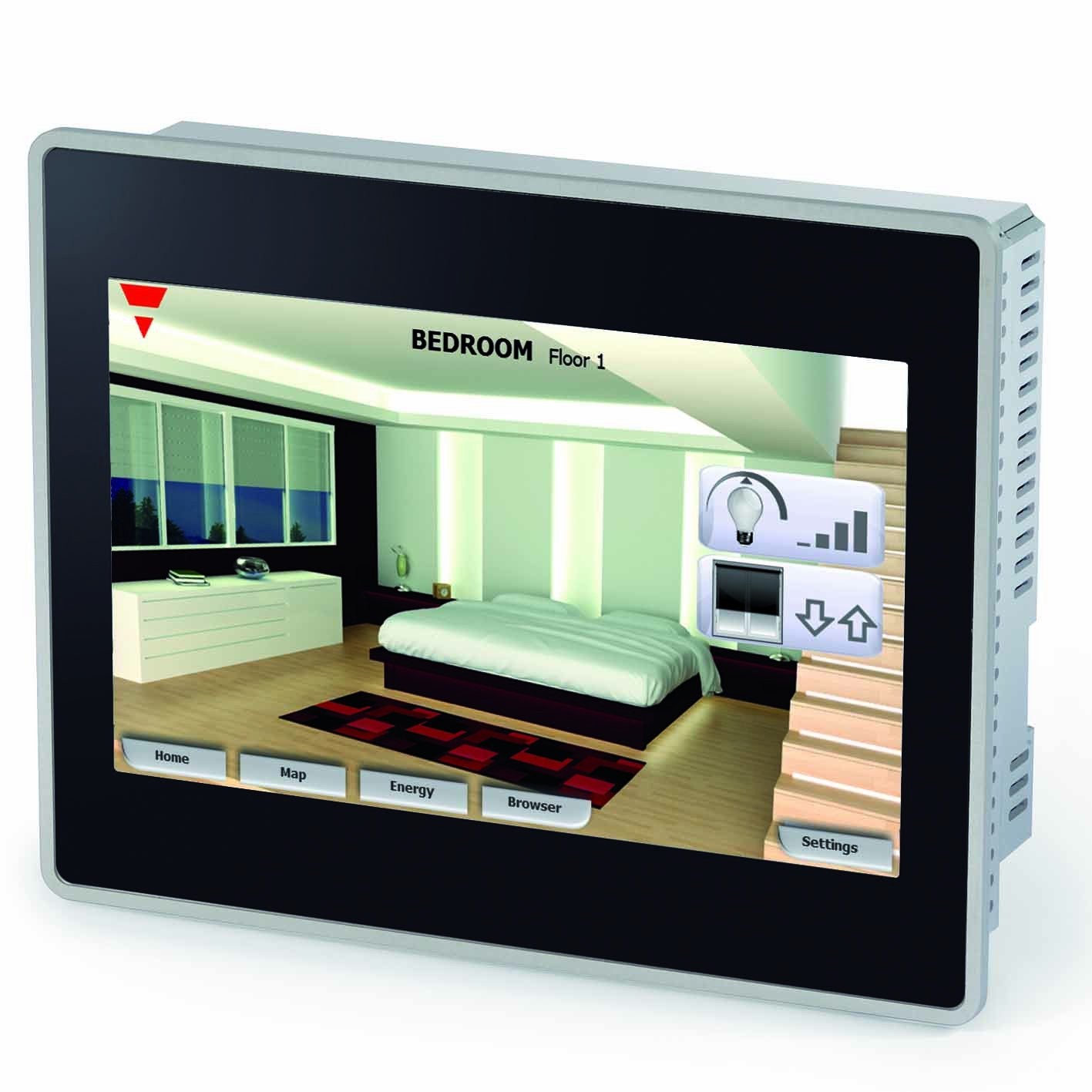

Carlo Gavazzi BTM-T7-24

SmartHUB is a completely configurable touch display. It is available in two versions, 7’’ and 4.3’’ wide, featuring a bright TFT widescreen (16:9) display with LED backlight. By means of the configuration software, the installer can create his own HMI interface or adapt the template downloadable from the ENERGI5 website, define the electrical values he needs to show/log, configure any Modbus RTU device very easily by just reading a csv file, read the smart-house configuration file and link the smart-house variable to images/pushbutton. Energy monitoring SmartHUB shows and logs the data collected from our Energy Meter on Modbus RTU or from inverters with Modbus RTU communication capability. It offers a wide range of analysis options: daily, monthly and annual graphs, relative and absolute yields, monetary yields, etc. Home/Building automation Connected via Modbus TCP/IP to the Carlo Gavazzi smart-house controller, SmartHUB is an elegant interface which can control all the home automation functions such as lights, scenarios, temperature, rollerblinds, alarms,… and can give information about everything that is happening in a house. * Optional plug-in BTMKNX provides a gateway between Smart Dupline and KNX/EIB bus.

Carlo Gavazzi 7' Touch screen display and datalogger BTM-T7-24

DATASHEET

USER MANUAL
